Quick Details

  • Condition: New
  • Type: Linear
  • Application: Ore
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: LZZG
  • Model Number: GP
  • Voltage: depends
  • Power(W): depends
  • Dimension(L*W*H): depends
  • Weight: depends
  • Certification: ISO
  • Warranty: 15 months
  • After-sales Service Provided: No overseas service provided
  • color: white, blue
  • usage: dewatering ore tailings
  • install: 45° angle install
  • model: standard and customized
  • market: Indonesia,India,Malaysia,Philippines,Sri Lanka, Australia, UAE...
  • preference: first order with free spare parts
  • sales service: sales man, engineers and technician all at your service
  • superiority: manufacturer guards you the good quality and low price
  • motor type: AC
  • key benefits: PU screen, adjustible frequency

Packaging & Delivery

Packaging Details Standard packing. The products should be processed to be rustproof and moisture proof before delivery. The surface of the machines should be processed smoothly and carefully. Big parts of the goods will be wrapped in the plastic sheet, and the small parts are packed into the wooden boxes.



Company Information

 LZZG (Luoyang Longzhong Heavy Machinery Co.,Ltd) focus on supplying a series sand processing machine,

from sand making (PCL, VSI vertical sand making machine)

sand screening (YA vibrating screen)

sand washing (LSX & XSD sand washing machine)

sand recycling (LZ Patent sand recycle system)

to sand dewatering (TS dewatering screen).



Product Description

 GP tailings dewatering screen

GP tailings dewatering screen is also a kind of vibrating screen mainly for the dewatering of the mine tailings, it concentrates the tailing slurry first and then dewaters treated materials on the vibrating dewatering screen, where more than 85% water contain is removed. For its strong expertise of the design and manufacture, LZZG hire experts in designing and manufacturing it for two years.



Screening sieve: PU screening sieve

Screening sieve hole size: 0.2-0.5mm

Usage:   It is widely used in dehydrating iron ore, copper ore, gold ore, aluminum ore, etc.

Working principle: GP series mine tailing screen is driven by two vibrating motors, which makes the screen sieve move to-and-fro on line to achieve the filtering purpose.

With the vibration of the screen, the concentrated tailings materials are continuously threw up and down on the screen, the materials are loosen and crashed to the sieve, the small size materials are filtered away from the sieve holes. Finally it reaches the aim of classifying, dehydrating and desliming.



 Model:   GP1837, GP1842, GP2437, GP2442 (special model can be customized according to the different needs of the customer)

Specifications

ModelSieve width (mm)Sieve length (mm)Sieve square (m²)Sieve hole size (mm)Power (kw)Capacity (t/h)Overall dimensions L*W*H (mm)
GP1837180037006.70.2-0.52*7.550-1003963*3013*1961
GP1842180042007.60.2-0.52*7.560-1104573*3013*1973
GP2437240037008.90.2-0.52*1180-1303986*3745*1961
GP24422400420010.10.2-0.52*1190-1504595*3745*2032



 Features:

1. High efficiency, strong vibrating force and large capacity.

2. Simple structure and easy operation and maintenance.

3. 45° angle install increases the dewatering area.

4. Vibrating frequency is adjustable to meet different ores.

5. Torsional shear type high strength bolts are used between side plates and beam, no weld

    gap that avoid side plates cracking during vibrating.

6. Polyurethane screen with better elasticity and less blocks. The PU side-push plates

   protect the equipment from the rushing material and guard the long life of the whole device.



FAQ
1.What's the spare parts and where can we get them? You can get them directly from us in a low price, and we make sure the easy maintainence and replacement.
Spare parts

2.And what's your productivity? Maybe the pictures below will set you at ease.
Producing site
3.Do your product easy to install? And do you have installer after sale? Yes, we not only send the installer, but also we provide you for the installing drawings.

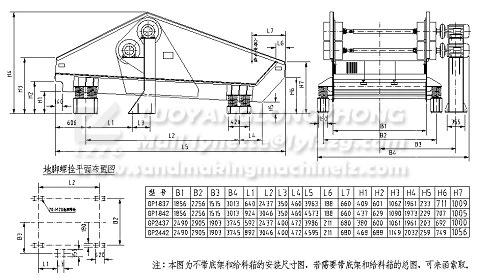

Installing drawing:

4.Do you have the products in stock? Yes, please see the picture and check for yourself.
In stock
5. Do your products work well? Of course, please do check our working site. If our quality is not good, i don't think we can sell so well.
Working site
6.How many customers do you have? Just look at our pictures of the packing and delivery, and guess.I'sure you will be satisfied.
Packing and delivery

7.Do you get any qualification honors? Yes, more than the followings.
Qualification honors
