Quick Details

  • Condition: New
  • Type: Spiral
  • Application: sand washing grading and dewatering
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: LZZG
  • Model Number: LSX
  • Voltage: depends
  • Power(W): depends
  • Dimension(L*W*H): depends
  • Weight: depends
  • Certification: ISO
  • Warranty: 15 months
  • After-sales Service Provided: Overseas service center available
  • color: yellow, blue, red
  • usage: sand washing grading and dewatering
  • install: 15° angle install
  • model: standard and customized
  • market: Indonesia,India,Malaysia,Philippines,Sri Lanka, Australia, UAE...
  • preference: first order with free spare parts
  • sales service: sales man, engineers and technician all at your service
  • superiority: manufacturer guards you the good quality and low price
  • motor type: AC
  • key benefits: large capacity

Packaging & Delivery

Packaging Details Standard packing. The products should be processed to be rustproof and moisture proof before delivery. The surface of the machines should be processed smoothly and carefully. Big parts of the goods will be wrapped in the plastic sheet, and the small parts are packed into the wooden boxes.
Delivery Time Within a week

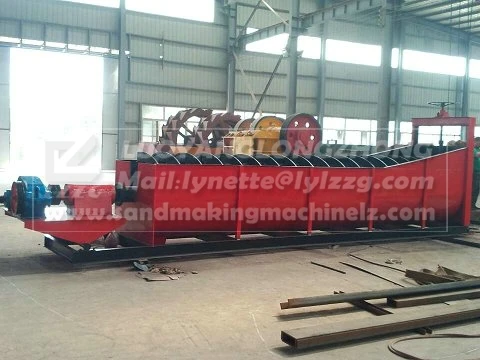

 Mineral using sand spiral washer from China



Company Information

 LZZG (Luoyang Longzhong Heavy Machinery Co.,Ltd) focus on supplying a series sand processing machine,

from sand making (PCL, VSI vertical sand making machine)

sand screening (YA vibrating screen)

sand washing (LSX & XSD sand washing machine)

sand recycling (LZ Patent sand recycle system)

to sand dewatering (TS dewatering screen).



Product Description

 LSX Series Spiral Sand Washer

Base on years' experience and technology, LSX  sand washing machine is designed to provide bigger capacity and higher cleaning level than traditional ones. It is also called “stone washing machine” as its input materials size at most can be 30mm. Now it is widely used for cleaning materials in quarry, minerals, building materials, transportation, chemical industry, water conservancy and hydropower, cement mixture station and so on.



Main washing and grading part: Spiral

Type: single spiral or double spiral

Max feeding size: 30mm



Usage:   It is widely used in quarry, minerals, construction, transportation,chemical, glass factory and oil mine , etc.

Working principle:  The spiral sand washer adopts inclination of 15°, under the water tub, three weir plates form the sediment pool, the screw head is immersed in this pool, the screw is driven by electric motor through reducer rotating continuously, the fresh water is feeding from porous plate at bottom of sediment pool, washed sand is discharged on the top side and delivered by belt conveyor.



 Model: LSX-920,2LSX-920,LSX-1120,2LSX-1120(special model can be customized according to the different needs of the customer)

Specifications

Model

         Spiral

Tank length

(mm)



Feed size

(mm)



Capacity

(t/h)



Power

(kw)



Water consumption

(t/h)



Weight

(t)



Machine size

(L*W*H) (mm)



NO

Diameter

(mm)

Rev

(rpm)

LSX-920  1 920 21 7585  ≤30 100 11 10-80 6.2 8420*2180*3960
2LSX-920 2 920 21 7585  30 200 2*11 20-160 11.5 9420*3970*3960
LSX-1120 1 1120 17 9750  30 175 18.5 20-150 10.9 10770*3950*4860
2LSX-1120 2 1120 17 9750  30 300 2*18.5 40-300 17.8 10770*5260*4860



Features:

1.Heavy duty, long service life and no quick-wear part

2.High washing, de-watering and classifying efficiency.

3.Economic and strong frame structure.



FAQ
1.What's the main structure of the spiral sand washer? Please check the following structure drawing, and the producing picture.

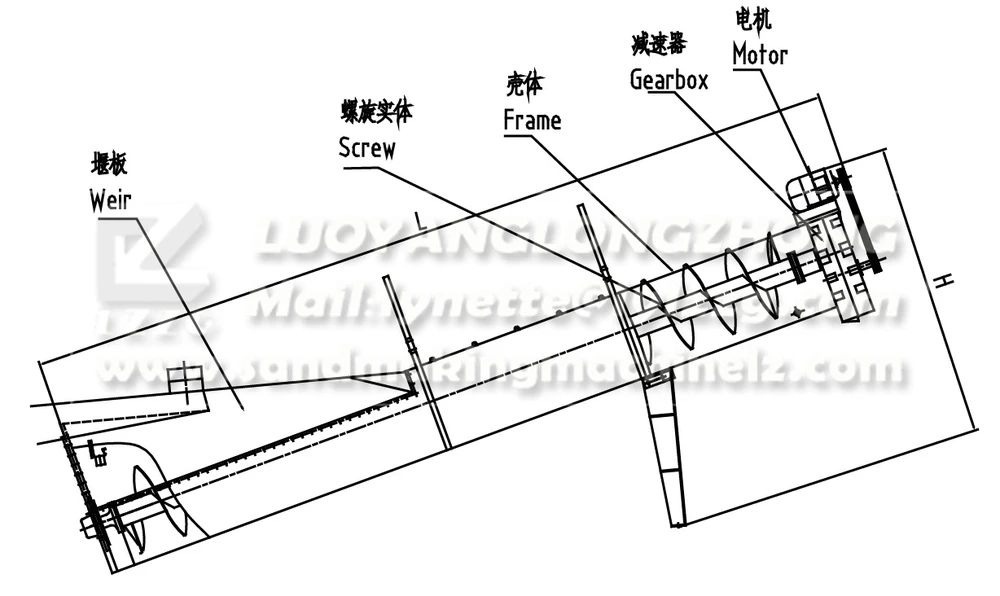

Structure drawing and picture:


 2.How many types do you have? We have single spiral type and double spiral type. Special model can be customized

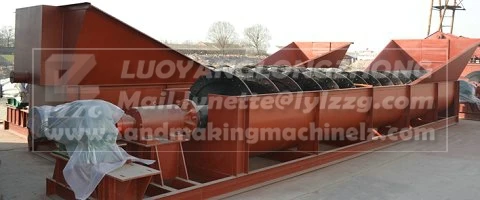

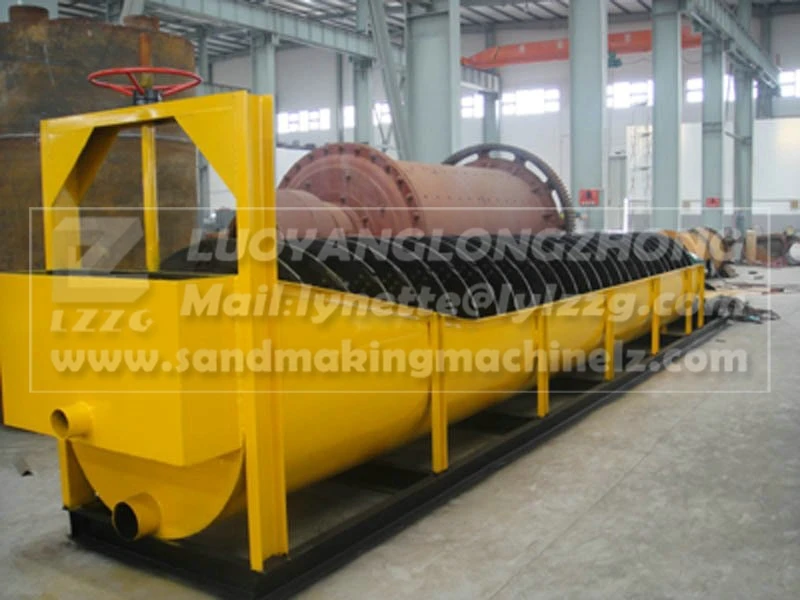

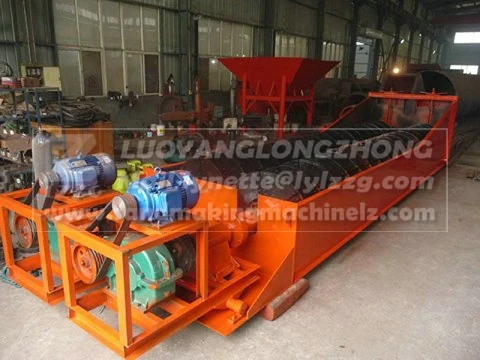

Single and double type picture:

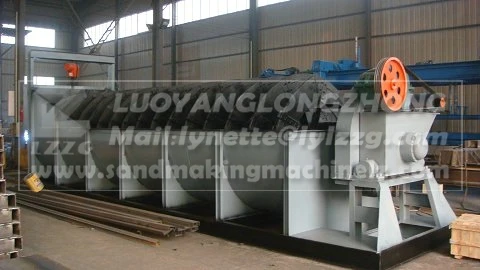

3.Do you have the products in stock? Yes, please see the picture and check for yourself.

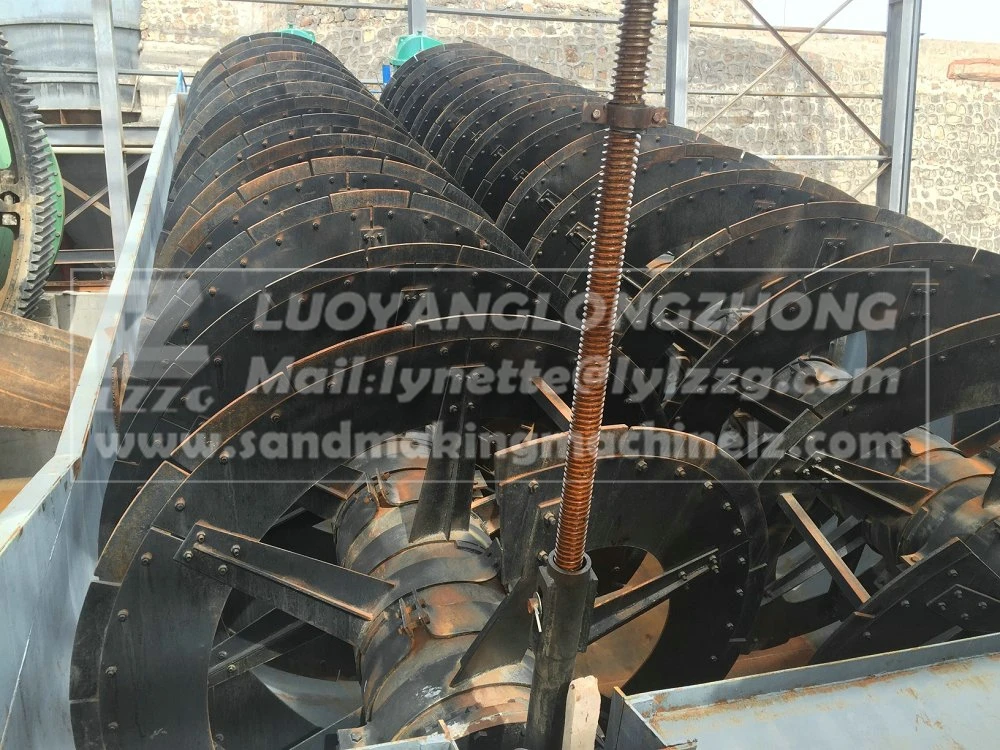

In stock
4. Do your products work well? Of course, please do check our working site. If our quality is not good, i don't think we can sell so well.

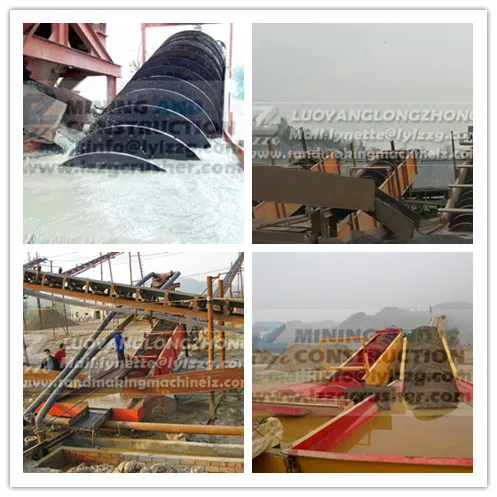

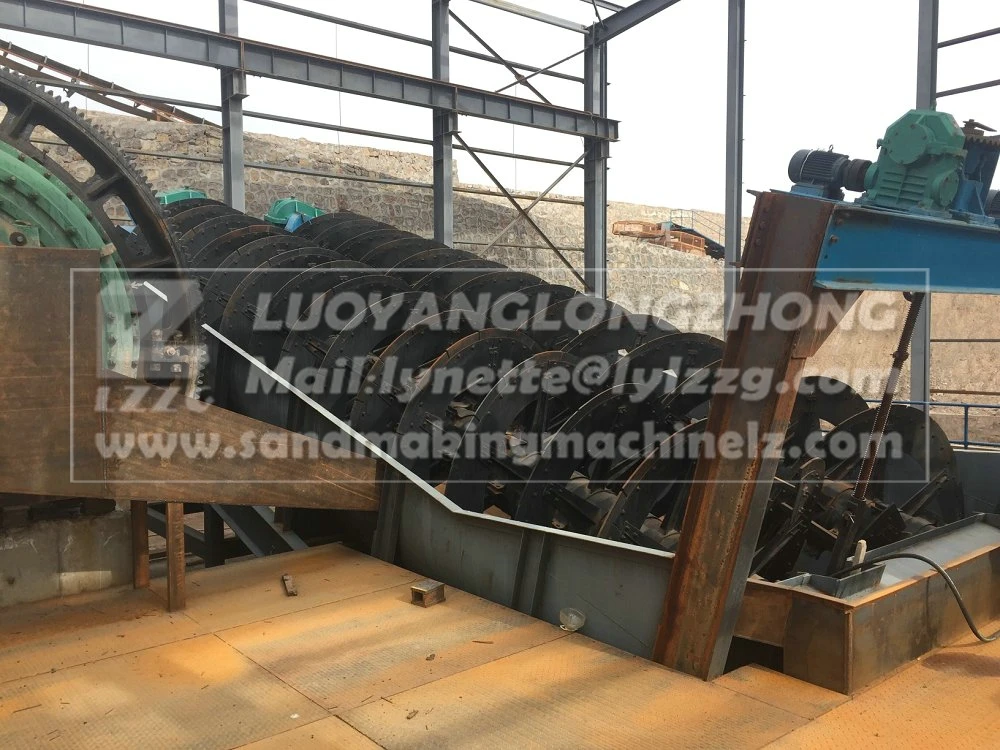

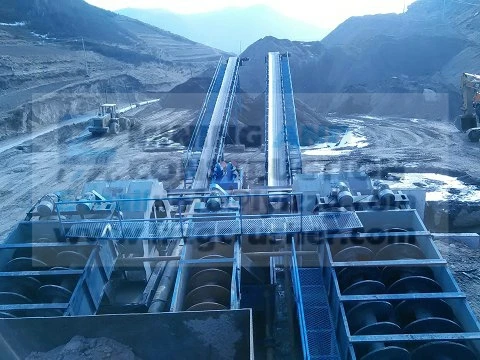

Working site

5. What's your producing capacity?Just look at our pictures of the working place, and guess.I'sure you will be satisfied.
Producing site

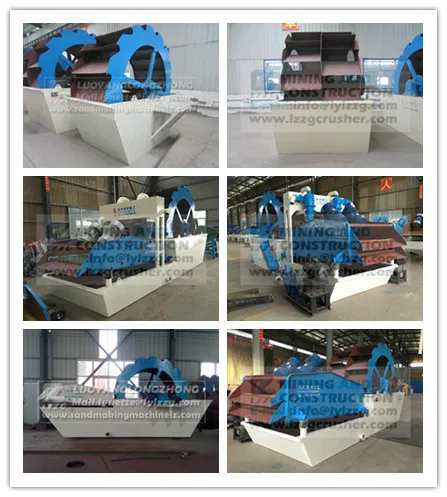

6.Can you recommend some related products? Of course, please look our new products pictures and choose.
Related products
