Adjustable LZ series silty sand extraction machine for glass raw material processing system

FOB Reference Price:Get Latest Price
US $3,500-8,500 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
10 Set/Sets per Week
Port:
Shanghai,Qingdao
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
LZZG
Model Number:
LZ
After-sales Service Provided:
Overseas service center available
Application:
sand washing plant
Color:
blue,white
Model:
LZ
Usage:
waste recycling,dewatering
Certificate:
ISO
Brand:
LZZG
Filter media:
polyurethane screen
Name:
sand recycling&dewatering machine
Weight:
depends
Efficiency:
depends
Packaging & Delivery
Packaging Details
standard packing ,20 feets container
mainbody wrapped by plastic sheet, sapre parts packed in wooden box
Delivery Time
Shipped in 7 days after payment
Product Description

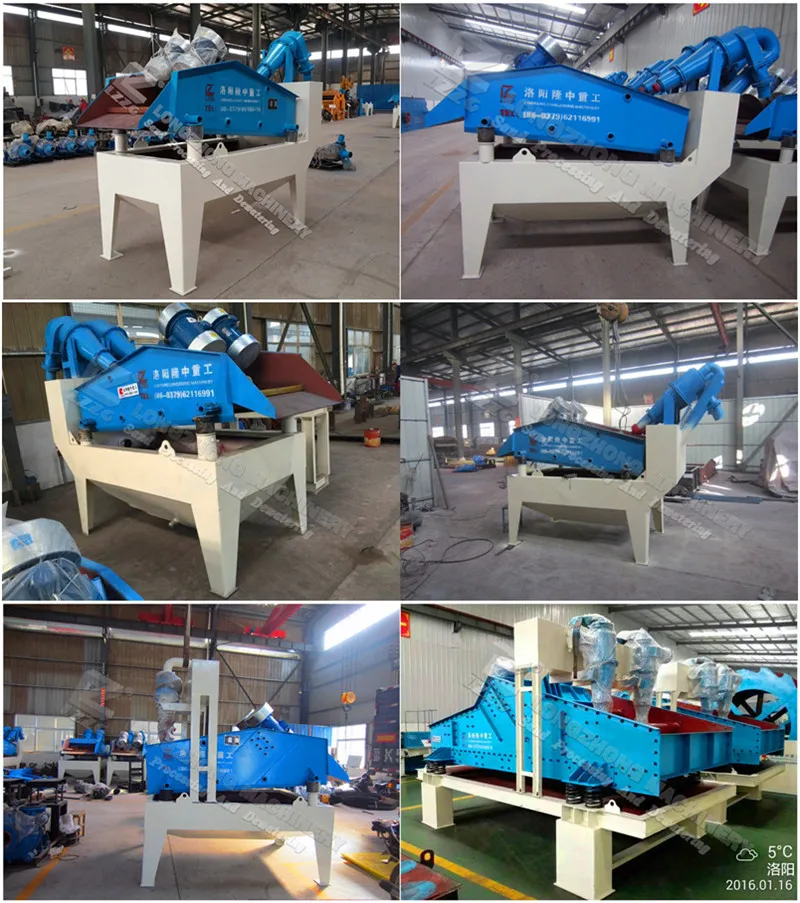

LZ series silty sand extraction machine for glass raw material





Working principle:

No.6 sand recycling machine, we still choose polyurethane screen as its main screening part, check its structure, we add recycling part on TS de-watering screen; sand after sand washer is fed onto polyurethane screen for de-watering waste sand water through steel chute or rubber pipe in water tank and extracted by slurry pump into high pressure sediment separator, fine sand 0.10-3mm is sprayed onto polyurethane screen also for de-watering, the waste water is back to return box and flowing out.

Features:

  1. Higher sand quality, lower moisture content
  2. Recycled fine size 0.10-3mm sand, lower mud content
  3. Compact structure and install easily
  4. Sand water content can be reduced to 10-15%



Specification:







Model

Slurry pump

Whirl cone

Polyurethane screen



Capacity (m³/h)



Weight (kg)

Power

(kw)

Material

Diameter (mm)

Size(m)

Square meter

Power (kw)

LZ10-25

7.5-11

Cr26

250

1*2

2

2*1.5

30-80

2.25

LZ10-30

11-15

Cr26

300

1*2

2

2*1.5

40-100

2.7

LZ12-55

15-22

Cr26

2*250

1.25*2.5

3.1

2*2.2

100-200

3.75

LZ12-65

    18.5-30

Cr26

2*300

1.25*2.5

3.1

2*2.2

120-250

4.25

LZ15-65

18.5-30

Cr26

2*300

1.5*3

4.5

2*3

150-275

5.15

LZ15-75

37-55

Cr26

2*350

1.5*3

4.5

2*3

180-350

5.65

                       (Note:Specific design can be made based on different requirements.)





Application:



It is widely used in mud purification, artificial sand production line, hydropower stationand sand aggregate system, glass raw material processing system and coarse slime recovery, and fine material recovery.







Delivery







FAQ

1.Is your product in stock?

Yes,once you place the order,the delivery will be done within one week.


2.Can the machine parts be replaced?

Yes,You can get them directly from us in a low price, and we make sure the easy maintainence and replacement .



3.How about your product performance?
Just look the picture and check for yourself.



Our Services

Market:worldwide

Technology: Engineers available to service machinery
Customized sizes:Specific design can be made based on different requirements.
