Quick Details

  • Place of Origin: Henan, China (Mainland)
  • Brand Name: LZZG
  • Model Number: LZ
  • Condition: New
  • After-sales Service Provided: Overseas service center available
  • Application: Mining Equipment
  • Color: Customer's Request
  • Warranty: 12 Months
  • Certificate: ISO9001
  • Product name: Sand Washing & Recycling Machine
  • Water consumption: Depends
  • Type: Wheel Sand Washing Equipment and recycling machine
  • Market: Asia, Africa, Mid-east, etc.
  • Online Service Time: 24 Hours
  • Sand Production(t/h): 30-300

Packaging & Delivery

Packaging Details standard wrap in plastic paper
Delivery Time 10-20days for normal items,20-30days for customized items
Product Description

Brief Introduction

LZ sand washing & recycling machine is based on sand washer and sand recycling system main tech, we make it a compact multiple function sand washer. It is widely used for crushed sand, river sand, lake sand or sea sand washing, screening, recycling and dewatering.

Working Principle

Step 1: Washing

The bucket is driven by the motor through the reducer and rotates in circle. There are many sand storage web grooves and bucket screen for sand storage and primary dewatering. When the bucket moves, sand can be put out by sand storage web groove after being cleaned in the cleaning tank and primary dewatered on the bucket screen.


Step2: dewatering

Qualified sand is shoveled to the dewatering screen directly. This dewatering screen sieve is made of PU polyurethane material, no blocking, can bear high temperature and corrosion resistance is high, service longer working hours. From this step, wet sand moisture can be highly reduced.


Step3: recycling

Flowing slurry water is extracted by slurry pump, fine sand is collected by the centrifugal force of the cyclone, then fed to the polyurethane screen from the apex spray. The 0.16-3mm fine sand and water are efficiently separated through the vibration screen.

Features

1. Multiple function: washing, screening, dewatering and recycling;
2. Recycling 0.16-3mm fine sand;
3. 95% sand can be recycled;
4. Moisture content within 15%;

5. Solving sedimentation tank cleaning problem, higher economical profit.

Tech specification
Model
Power (kw)
Specs (mm)
Feed size
   (mm)
Sand production       (t/h)
Water (m³/h)
Overall Dimension         (L*W*H)(MM)
LZ26-35
28.4
350
≤10
20-50
50-80
6200*2150*2670
LZ26-55
31.9
2*250
≤10
30-60
60-130
6200*2150*2670
LZ26-65
47
2*300
≤10
50-120
70-150
7200*2900*3070
Detailed Images

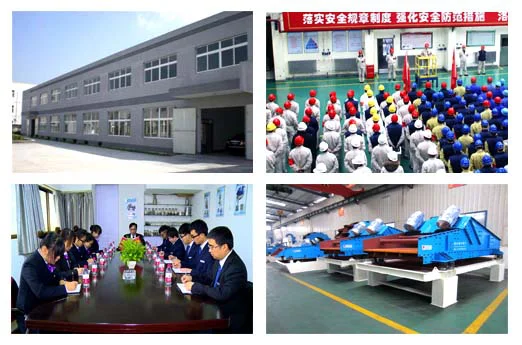

ABOUT US

Luoyang Longzhong Heavy Machinery Co., Ltd. is an international enterprise specialized in R & D, production and marketing of mining machinery and industrial milling equipment. Our company develop the production of mining machinery and industrial milling equipment, products are widely used in mining, metallurgy, construction, chemical, power, steel and other industries.

Since its inception, the company quickly occupied the global market by its reliable product quality and perfect after-sales service. The products are exported to Europe, Australia, North America, South America, Southeast Asia, the Middle East, Central Asia, Africa and other countries.

Our company has senior design engineers of the mining machinery and industrial milling equipment, domestic and foreign famous universities, degrees, and other technical elites, to provide an inexhaustible driving force for sustainable development of enterprises, and they work together to ensure the long product development, design, production and after-sales service in every aspect of efficient and perfect.

Our company based on the market demands, always adhere to the development strategy of large research and development, precise production, and excellent service, by virtue of the excellent quality products and efficient service to meet customer needs, so that the Luoyang Longzhong Heavy Machinery thinks globally! We will fully meet your diverse needs, and cast your new brilliant!

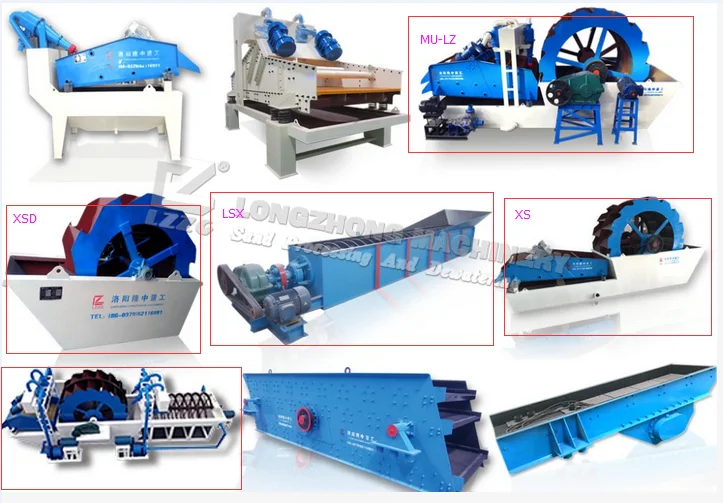

Our Products

Vibrating screen: YA series,1 layer, 2 layers, 3 layers,4layers.
Sand washing machine: XSD wheel bucket sand washer,LSX spiral sand washer
Dewatering screen: TS series,the final water content down to 12-15%
Sand recycling system: 0.16-3mm fines recycling machine, LZ sand washing and recycling machine

Purification system: high capacity thickener, plate-type filter press

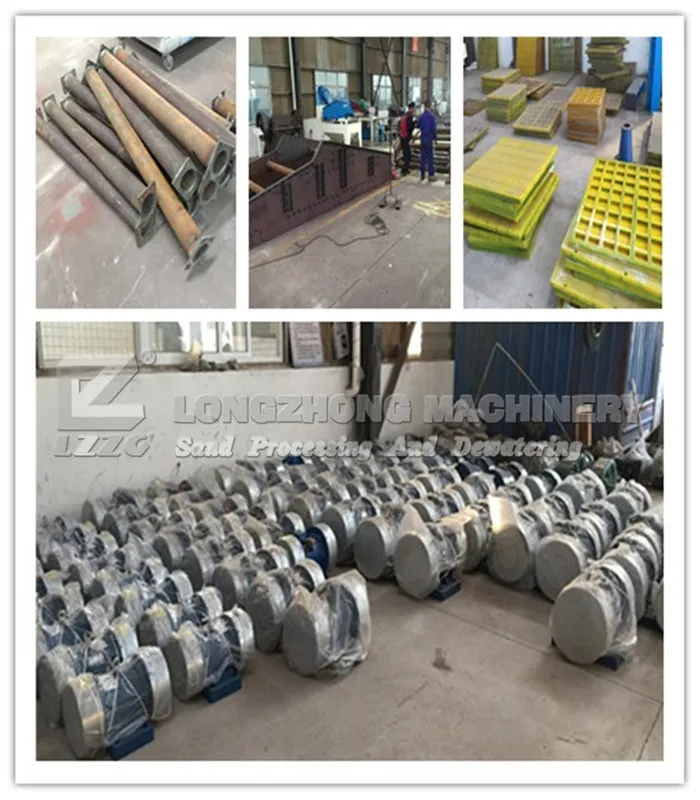

Main Spare parts

Polyurethane screen mesh: Good self-cleaning properties, No blocking, high screening efficiency, long service life is the feature.

Hydrocyclone: Using high wear resistant materials, high elasticity, high strength, high wear resistance, tear resistance, resisting punching shear is the characteristic of hydrocyclone

High efficiency compound spring: also called Spiral Composite Spring, with the characteristics of structure damping and nonlinear of the rubber spring, also has the large deformation of metal spring and heavy load capacity (great bearing capacity)  features

Our service team

We promise our satisfactory service will be always along with you in the whole process. Any questions during your daily usage, don’t hesitate to contact us at any time you need. Thanks again for choosing "LONGZHONG Brand Machine". I believe the co-operation between us will make great contribution to our two nations, even the whole world.

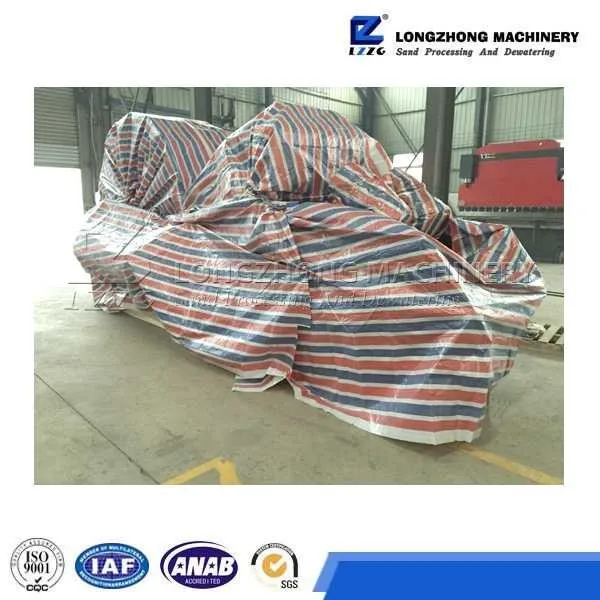

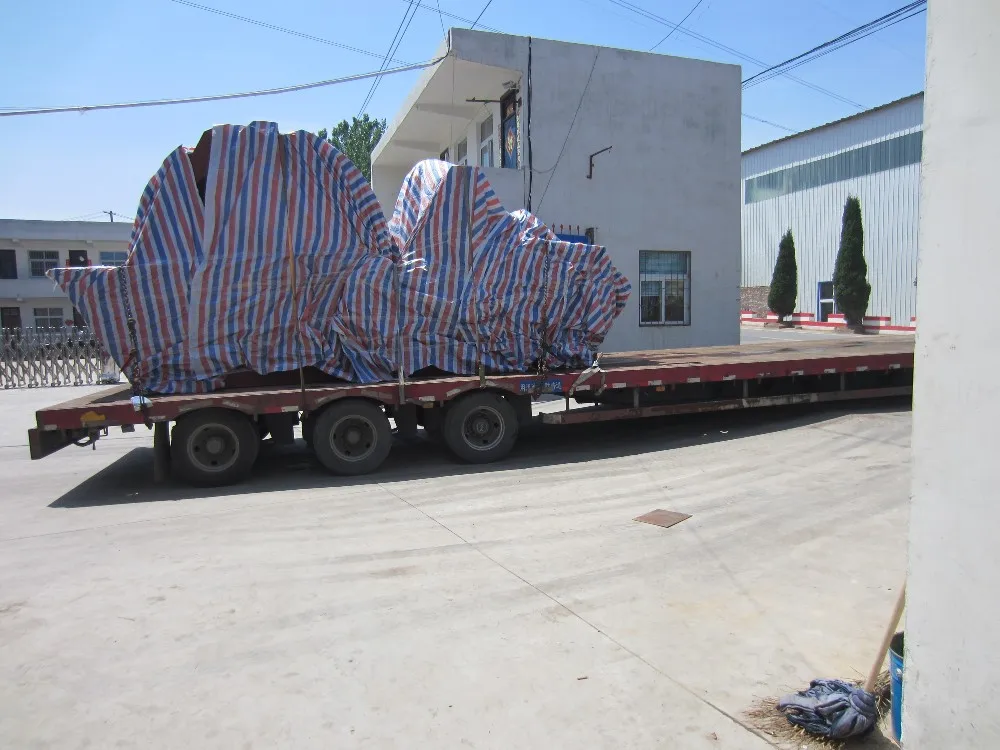

Packing & Delivery

Contact information

If you are interested with our products, please don't hesitate to contact us.  Then I can give you best solutions for you.
Please kindly tell me the following questions:
1. The usage.
2. The capicity you want.
3. The screen mesh size.
4. Other requirements.

LZZG- Luoyang Longzhong Heavy Machinery Co., Ltd.
Tel: 0086-379-65160016
Mobile: 0086-15090165004
Welcome to visit our website for product categories list:  www.lylongzhong.en.alibaba.com  OR  www.lzzgchina.com
