Quick Details

  • Condition: New
  • Production Capacity: 150-200 Ton/hr
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: LZZG
  • Model Number: DS
  • Voltage: 380V
  • Power(W): 96KW
  • Dimension(L*W*H): 12500(mm)x2400(mm)x3670(mm)
  • Weight: 24 Tons
  • Certification: ISO
  • Warranty: One Year
  • After-sales Service Provided: No overseas service provided
  • Application: Mining
  • Color: Blue and white
  • Model: DS
  • The Machines classification: Africa Stone Crusher Production Line
  • Usage: Grading
  • Type: Wheel Sand Washing Machine
  • New tech: Combine
  • Spare Parts Supply: Life Long Provide
  • Product name: Widely-used sand washing machine
  • Install: Engineer Guide Aboard

Packaging & Delivery

Packaging Details 20 container
Delivery Time Shipped in 20 days after payment

spiral screw sand wash machine for mineral processing plant

Equipment brief introduction

With the shortage and non-renewable of mining resources, LZZG blockbuster launched DS series new sand washing equipment.



Product Description

Product Name

Sand washing plant

Key words

Sand washing plant, screening, dewatering, recycling

Brand

LZZG

Component

Spiral sand washer, wheel sand washer, sand dewatering screen

Brief Introduction

With the shortage and non-renewable of mining resources, and based on the main tech of sand washer and sand recycling machine, we launched a new product--- DS sand washing plant. It is widely used for natural sand and crushed sand.

Application

Quarry, aggregate plant, mining, construction site, transportation, concrete mixing plant, etc.

Usage

For washing, screening, dewatering and recycling natural sand and crushed sand.

Working Principle

Sand (processed by screen) flow into spiral sand washer through chute and cleaned, soaked, broken up(especially used in high mud content material). Tailing and waste water discharges into separating device to concentrate and grading. Then sand(cleaned by spiral sand washer and separated by cyclone) discharges into wheel sand washer for secondary cleaning at the same time.  Then the sand cleaned by wheel sand waher into dewatering screen for dewatering. Waste water into secondary cyclone  for separating. Finally, the final product, which is fully dehydrated transported into pile by belt conveyor.

Features

1.  Multiple function: washing, screening, dewatering and recycling;
2.  Recycling 0.16-3mm fine sand;
3. 95% sand can be recycled;
4. Moisture content within 15% ;
5.  Solving sedimentation tank cleaning problem, higher economical profit.

Payment

Payment terms

T/T, Western Union

Packing & Delivery

Packing

Standard packing

Delivery time

Within 7 days





Technical specifications

Model

Power

(kw)

Sand capacity

(t/h)

Max feeding size

 (mm)

Secondary separating

(optional)

Sand production rateWeight  (t)
DS-L261242.930-50≤10No90%11
DS-L261264.940-60≤10Yes98%12.5
DS-2L30156680-100≤10No90%22.3
DS-2L30159690-110≤10Yes98%24

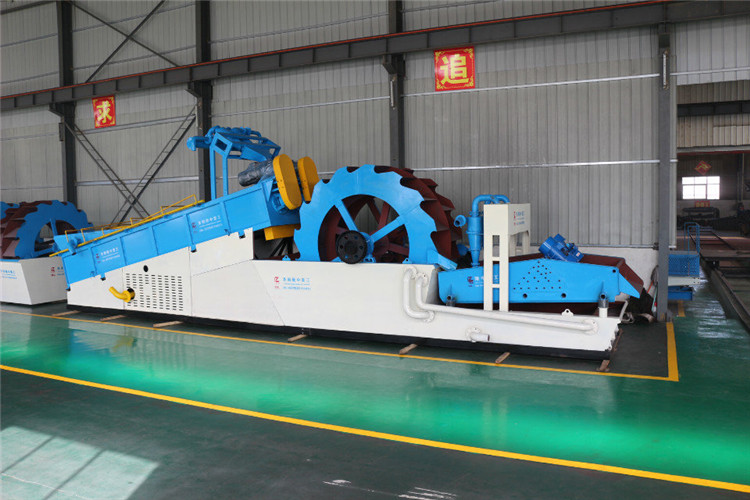

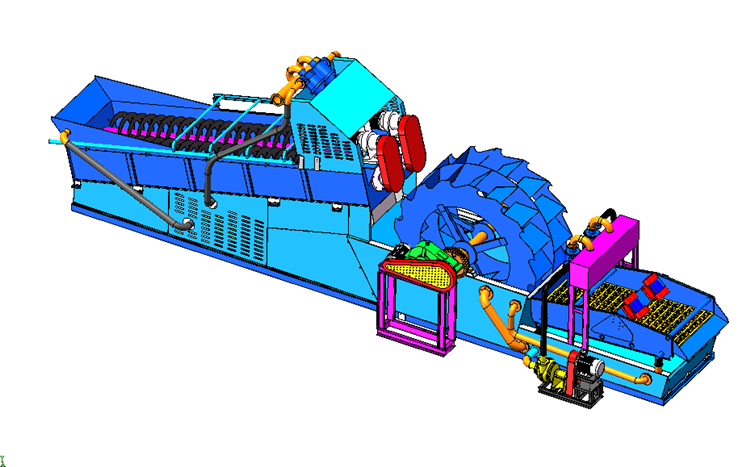

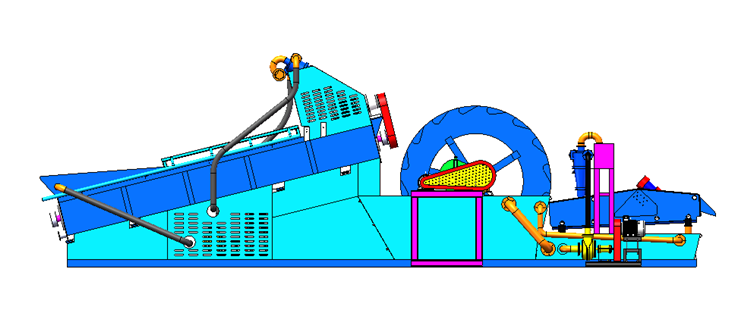

Product show

Company Information

 Our company

Luoyang Long zhong Heavy Machinery Co., Ltd is an international venture specializing in developing and marketing mining machinery and powder-making equipment, which are widely used in mining, metallurgy, construction, chemistry, electrics and steel industry. Since coming into being, our company has taken the global market with reliable quality and perfect after-sale service. And our products have been exported to Australia, Europe, North America, South America, Southeast Asia, Middle East and Africa.

Our service team

We promise our satisfactory service will be always along with you in the whole process. Any questions during your daily usage, don’t hesitate to contact us at any time you need. Thanks again for choosing "LONGZHONG Brand Machine". I believe the co-operation between us will make great contribution to our two nations, even the whole world.

1. Product quality : Adopt the Luozhou bearing, 235 high quality carbon steel or high manganese, fuselage seamless steel pipe and elbow connection, welding technology leading.
2. Product packaging and delivery: the package conforms to the moisture, rain, rust, corrosion and shock, the logo is clear. The goods will arrived at the scene safely in time,strictly enforce the terms of the contract agreed by the parties.
3. Technical training services: buyer's relevant personnel can correctly understand the working principle of the equipment and grasp the operation, check, maintenance and repair of the equipment.
4. High quality, efficient technical services within 24 hours.

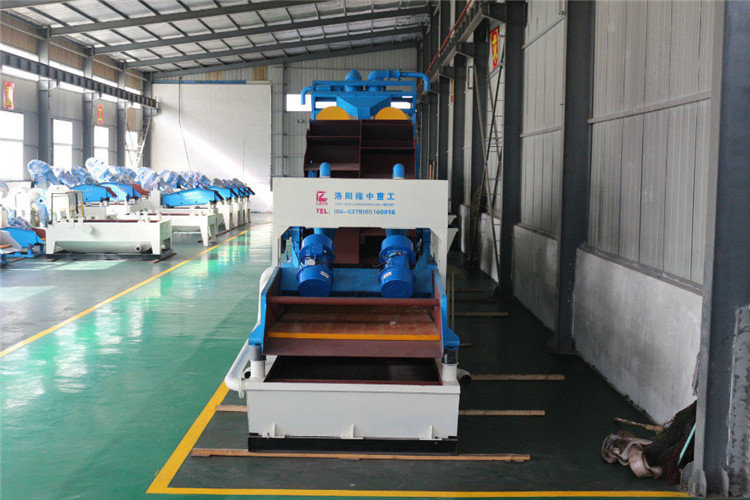

Our workshop

Our clients





Our certificate



Technology: Engineers are available to service machinery and technical problem.

Customized sizes: Specific design can be made based on different requirements.
