Quick Details

  • Condition: New
  • Motor Type: AC Motor
  • Power(W): 58
  • Capacity(t/h): 150-200
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: LZZG
  • Model Number: LZ30-75
  • Dimension(L*W*H): 7200*2400*3070
  • Weight: 9.95
  • Certification: ISO
  • Warranty: 15 Months
  • After-sales Service Provided: Overseas service center available
  • Name: Sand washing and recycling machine
  • Color: Blue,White
  • Application: Quarry/Mining/Construction, etc
  • Usage: Washing, Recycling
  • Replacement: PU Screen, Sieve screen
  • Spare Parts Supply: Yes
  • In stock: Yes

Packaging & Delivery

Packaging Details Standard packing
Delivery Time Within 7 days
Product Description
Best river sand mining equipment, river sand washing drying equipment

Product Application

Vibrating screen sand washing machine is based on sand washer and sand recycling system main tech, we make it a compact multiple function sand washer. It is widely used for crushed sand, river sand, lake sand or sea sand washing, screening, recycling and dewatering.

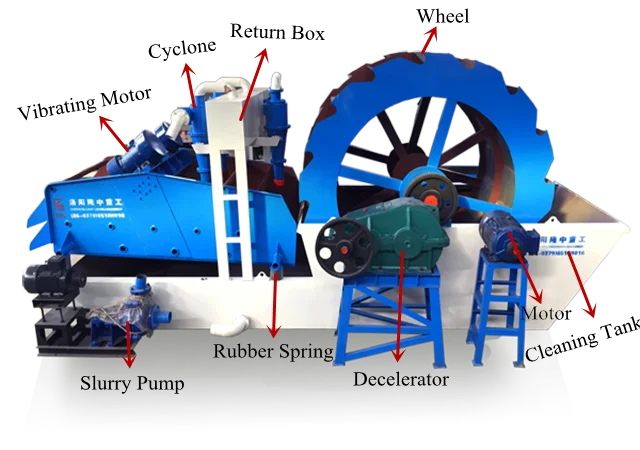

Working principle

Step 1: Washing

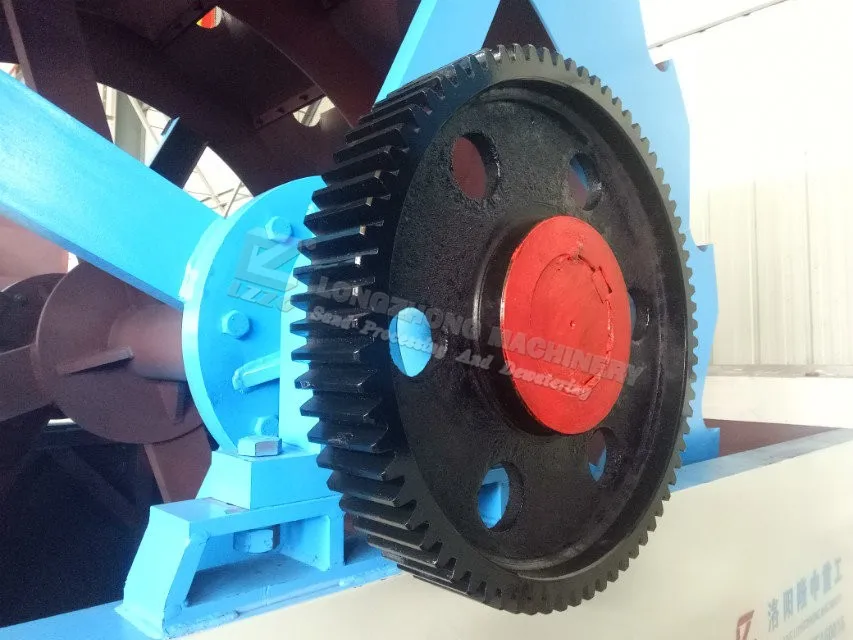

The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder.

Step2: dewatering--
Qualified sand is shoveled to the dewatering screen directly. This dewatering screen sieve is made of PU polyurethane material, no blocking, can bear high temperature and corrosion resistance is high, service longer working hours. From this step, wet sand moisture can be highly reduced.

Step3: recycling--
Waste sand water is extracted by slurry pump into high pressure sediment separator, fine sand 0.16-3mm is sprayed onto polyurethane screen also for de-watering, the waste water is back to return box and flowing out.

Technical Parameters
Model
          Power          (kw)
Specs (mm)
Feeding Size(mm)
Production (t/h)
    Water       (m³/h)
Overall Dimension (L*W*H)(mm)
LZ26-35
23.5
350
≤10
30-50
50-80
5900*2000*2650
LZ26-55
27
250*2
≤10
40-60
60-130
6300*2000*2650
LZ30-65

37.9
300*2
≤10
80-130
70-150
7500*2500*3000
LZ30-75
56.4
350*2
≤10
100-120
150-200
7500*2500*3000

Main Features

1. Recycling 0.16-0.3mm fine sand;

2. High productivity and 95% fine particles in the material can be recycled;

3. Solving cleaning problem of sedimentation tank and improving economic performance at the same time.

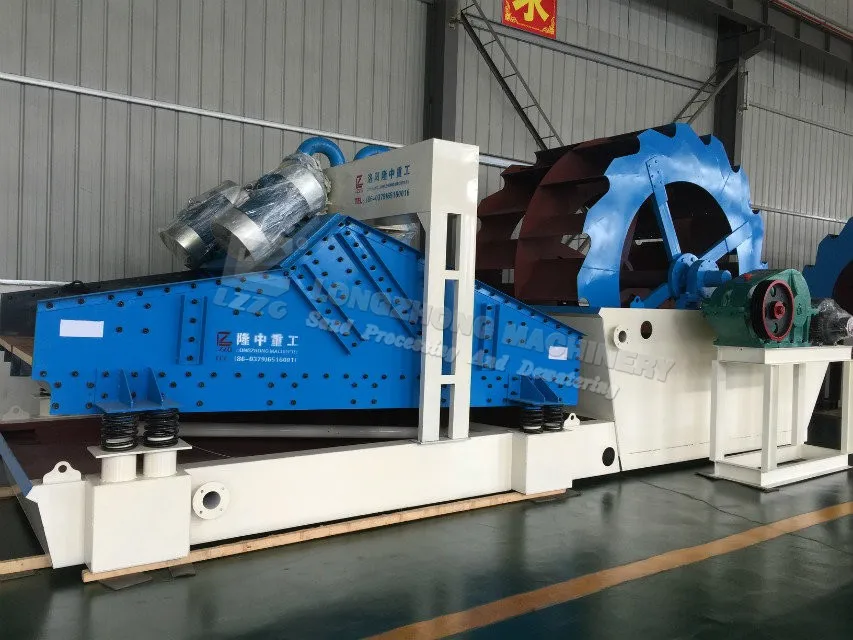

Detailed Images


          Machine Parts

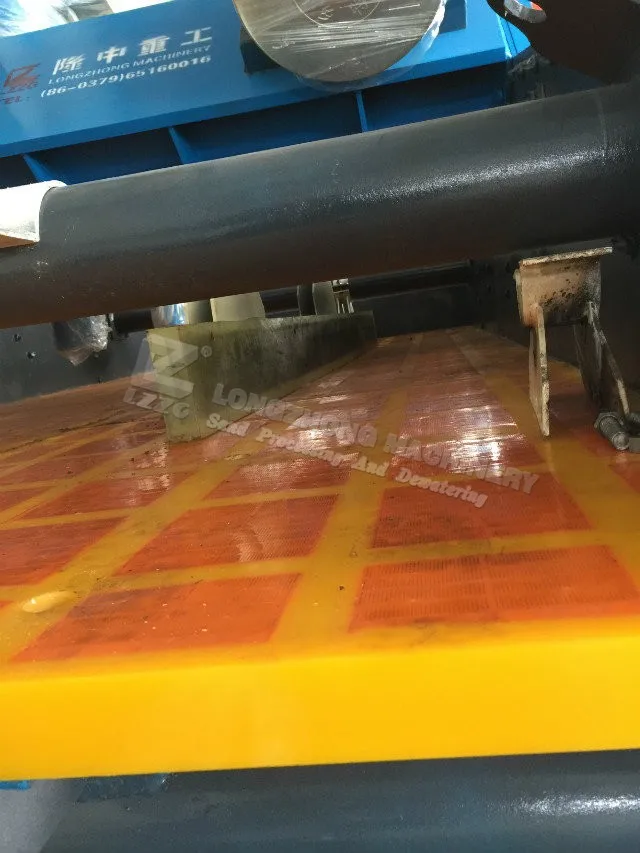

                 Name: Polyurathane Screen

                 Brand: LZZG

                 Original:  China

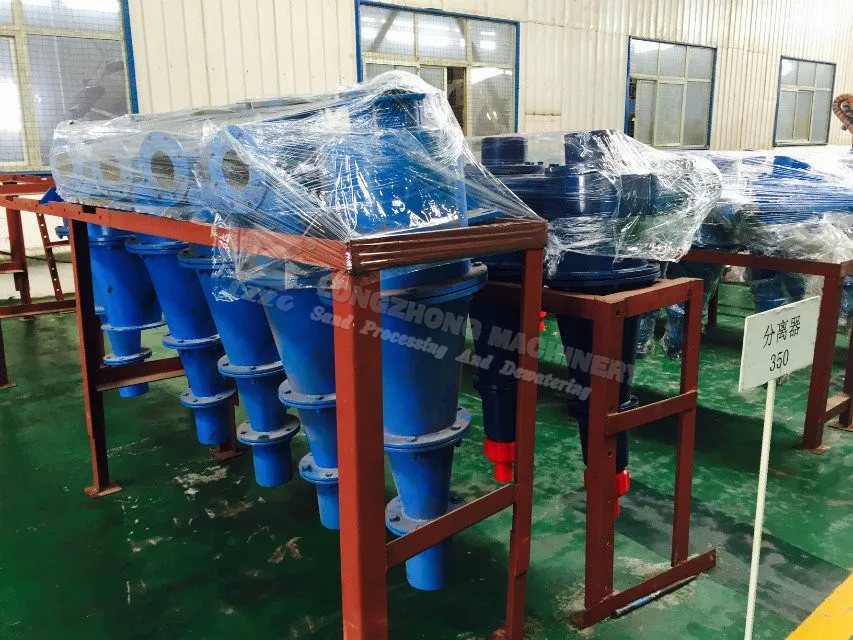

Machine Parts

Name:  Cyclone
Brand:  LZZG
Original:  China



            Machine Parts

                 Name: Impeller
                 Brand: LZZG
                 Original:  China

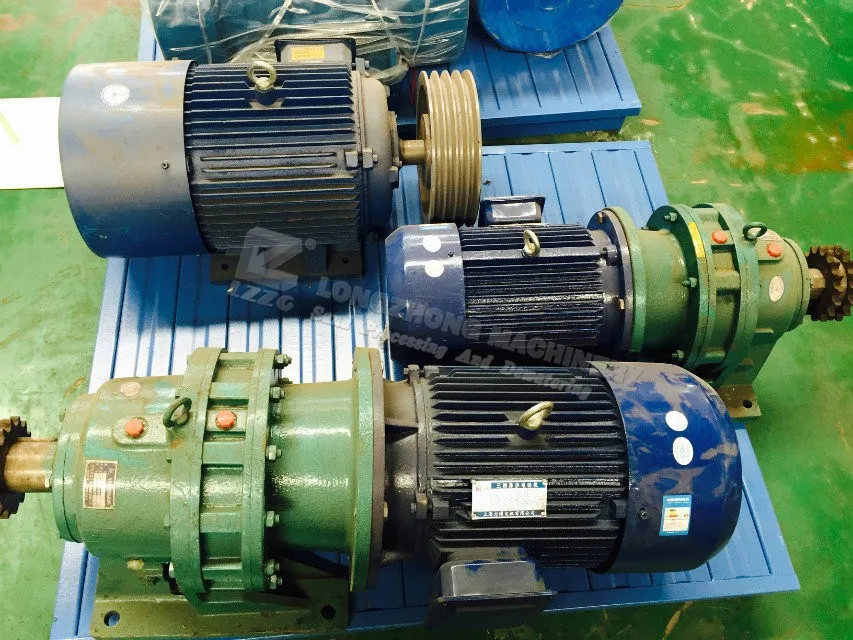

Machine Parts

Name:  Motor
Brand:  LZZG
Original:  China




          Machine Parts

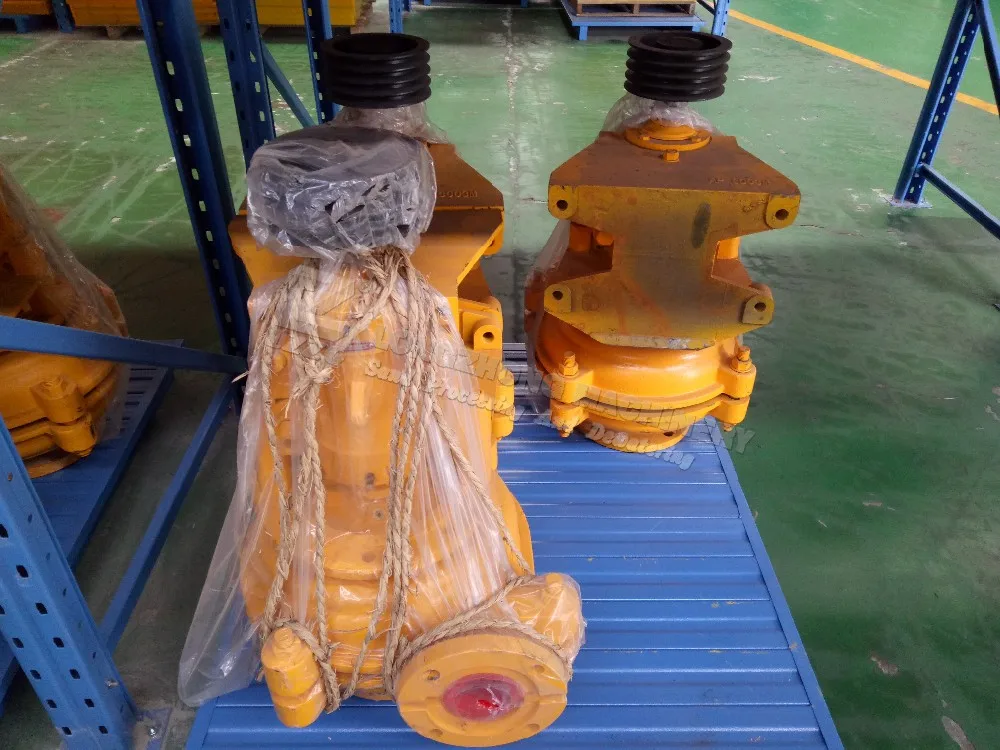

             Name: Slurry Pump

              Brand: LZZG
          Original: China

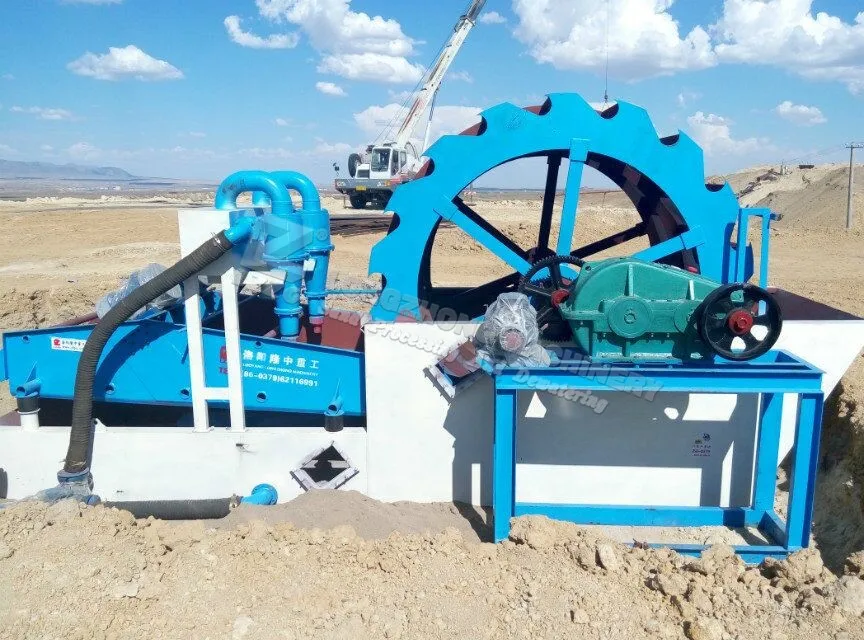

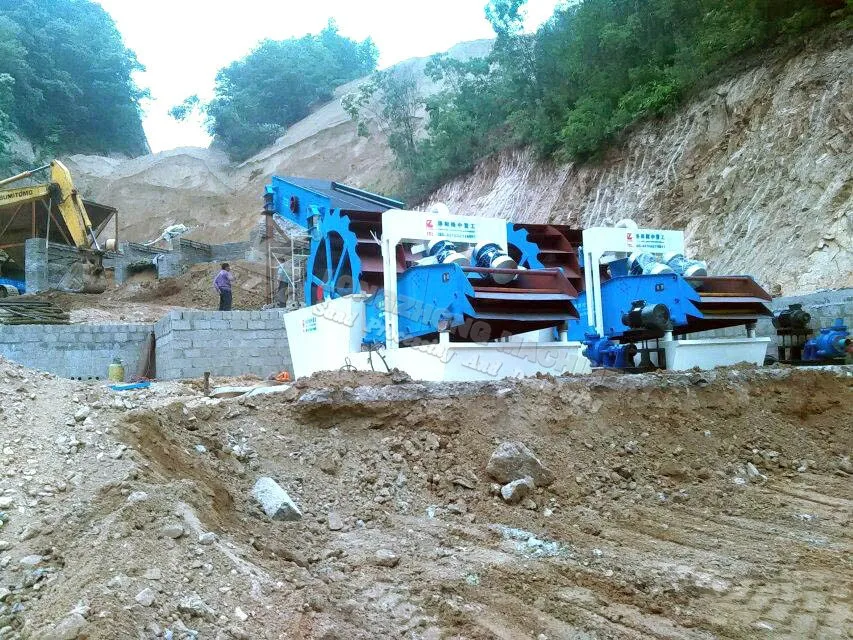

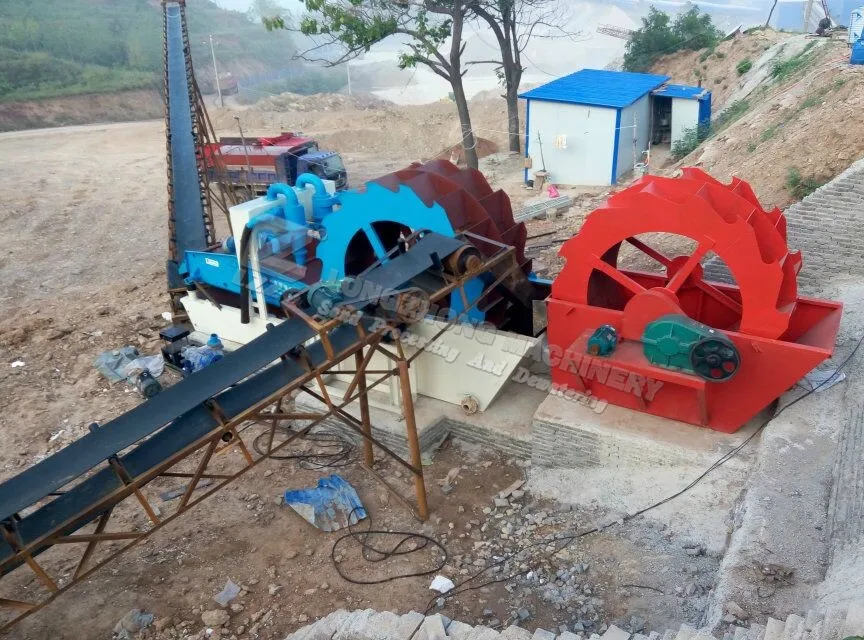

Working Site

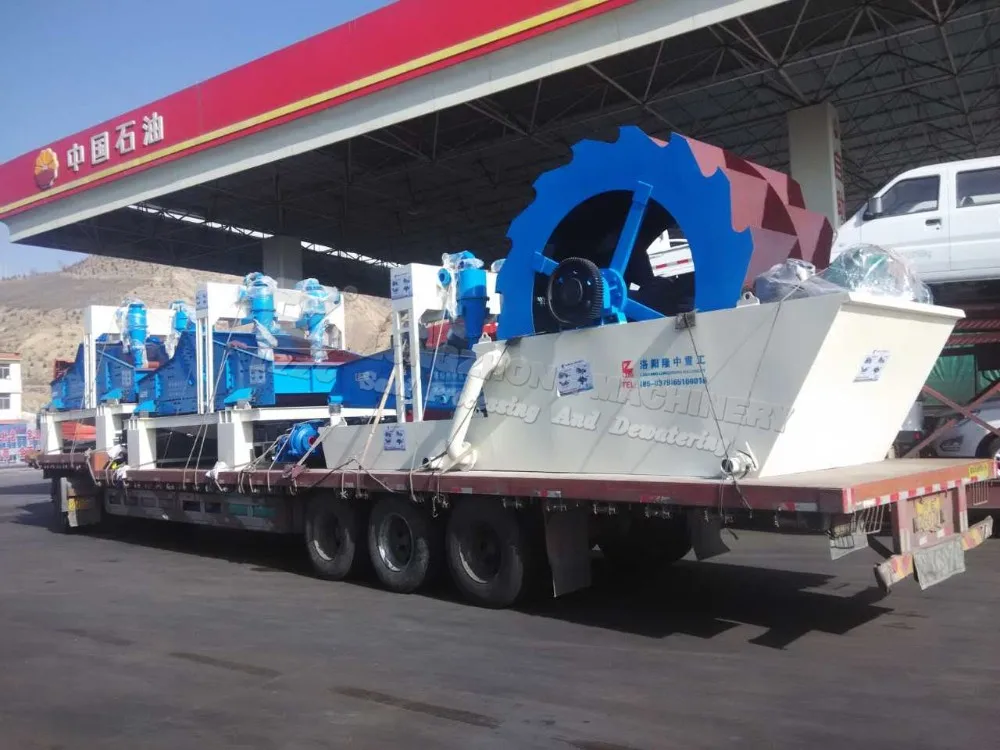

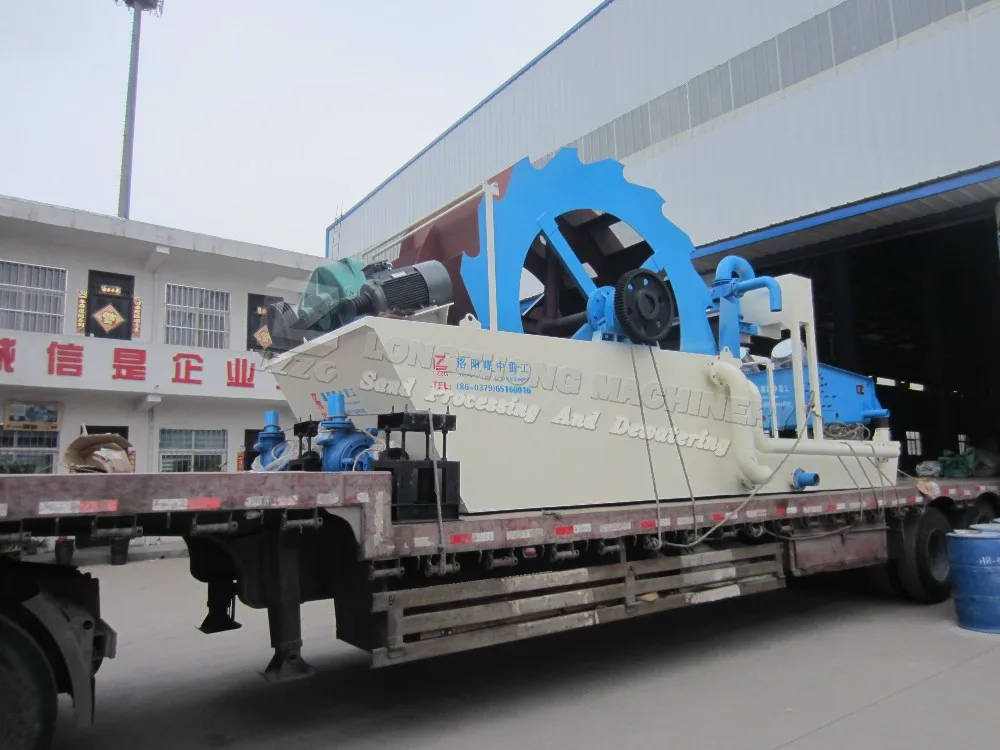

Packing & Delivery
Packaging
Model
LZ30-75
Weight
9.95t



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Model
LZ30-75
Weight
9.95t



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

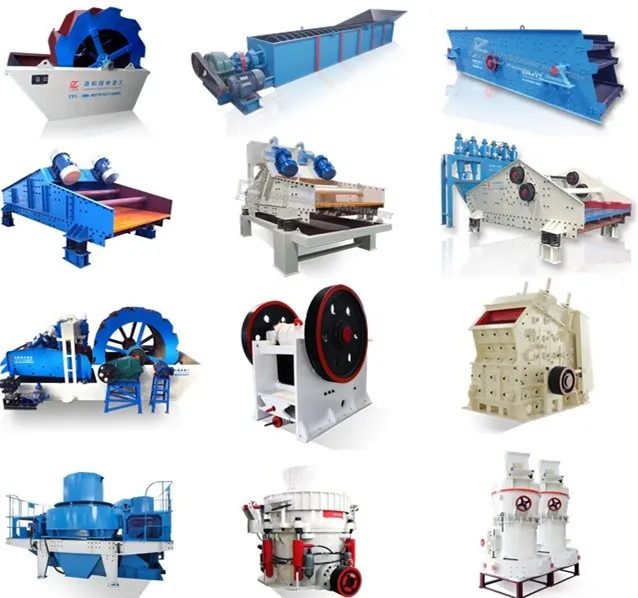

Related Products
Crusher: Jaw crusher, Impact crusher, Cone Crusher,Roller crusher,etc
Vibrating screen: YA series,1 layer, 2 layers, 3 layers,4layers...
Sand washing machine: XSD wheel bucket sand washer,LSX spiral sand washer
Dewatering screen: TS series,the final water content down to 12-15%
Sand recycling system: 0.16-3mm fines recycling machine, LZ sand washing and recycling machine
http://lylongzhong.en.alibaba.com/    Click here to view more related products
Company Profile
Luoyang Longzhong Heavy Machinery Co., Ltd is an international company, which specialized in researching, marketing and selling mining and powder-making machines for decades. Our products are mainly used in mining, metallurgy, construction, chemistry, electrics and steel industries. Our clients are widely distribute in Australia, Europe, North America, South America, Southeast Asia, Middle East and Africa.
Most of our staffs are graduated in well-known universities from all over the wold, they provide the sustainable development for company with endless driving force and already made great effort to ensure the efficiency and perfection of the research and sales service procedures.
In feature, we will continually improve R&D team and improve producte and service.

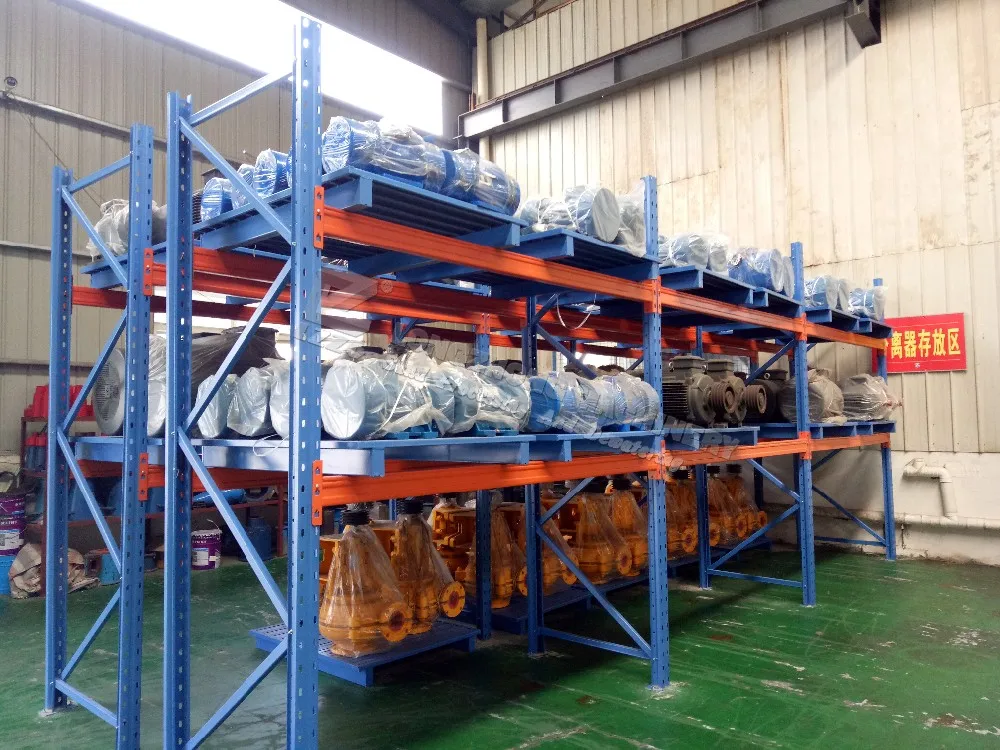

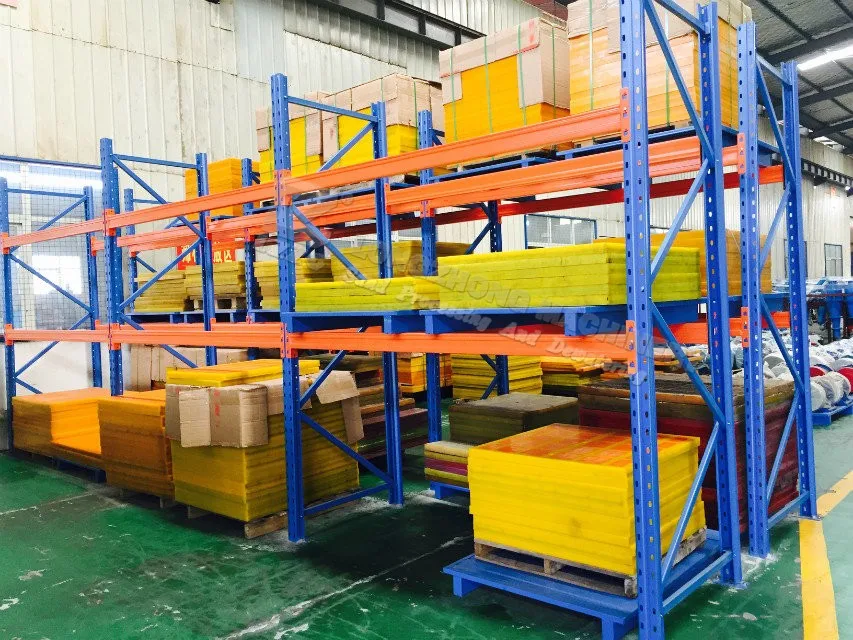

In Stock
About Us
Factory

Certificate Honors

Our Service

› Pre-sale Service:
Choice of model
Designing and manufacturing product according to customer's special requirement
Company will arrange engineer to customer's site,designing site and discussing project

› Content on service:
Product inspection
Help customer to formulate the construction plan

› After-sale Service:
Assign special after sale service team to site guiding customer to install and adjust machines
Training operator on site

FAQ
1.Does your product in stock?
Yes,once you place the order,the delivery will be done within one week.

2.Can the machine parts be replaced?
Yes,You can get them directly from us in a low price, and we make sure the easy maintainence and replacement .

3.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every product before delivery.Please check our working site. If our quality is not good, i don't think we can sell so well.

4.Guaranteed?
Yes. If products’quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.

5.How about price?
Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.
